When choosing an HVAC system, the choice between 3 heat stages vs 2 heat stages is important. Both 2 or 3-stage furnaces are comfortable, with the 3-stage being superior to the 2 because of its extremely low fire capacity, and controlled by a decent multistage thermostat or communication control.
| Feature | 2 Heat Stages HVAC | 3 Heat Stages HVAC |
|---|---|---|
| Number of Heating Levels | 2 (Low and High) | 3 (Low, Medium, and High) |
| Efficiency | Moderate energy efficiency | Higher energy efficiency |
| Comfort Level | Consistent but less precise | More precise temperature control |
| Heating Flexibility | Limited flexibility | Greater flexibility to match heating demand |
| Energy Consumption | Moderate | Lower overall energy consumption |
| System Cost | Lower initial cost | Higher initial cost |
| Operational Noise | Generally louder during high stage | Quieter due to lower and middle stages |
| Compatibility | Works with standard thermostats | May require a more advanced thermostat |
| Best For | Moderate climates | Cold climates with variable heating needs |
| Lifespan of the System | Standard | Potentially longer due to reduced wear |
A two-stage heat pump runs for a longer and more consistent period of time, compared to a single-stage. This helps them to control the inside temperature of the house better. When a single-stage unit is turned on, it releases larger bursts of heat that lead to more interior temperature variations.
A heat pump will cycle on and off at low speed, or first stage, until the weather gets extremely cold or hot and requires a jump to high speed, or second stage, to keep up. The heat pump will automatically switch between stages in response to the temperature you select on the thermostat.
Stage 2
Stage 3
The number of conductors or phases in the electrical system is the main difference between 2-phase and 3-phase AC. Two hot conductors, one 90 degrees apart from the other, carry electricity in two-phase AC. This creates two sine waves that are 90 degrees out of phase. Three hot conductors in three phases of AC are spaced 120 degrees apart from one another.
This creates three sine waves that are 120 degrees out of phase. An early type of polyphase power was 2-phase AC. Still, because 3-phase is more efficient and can create a more uniform rotating torque, it has become the more widely accepted standard for high-power industrial and commercial applications.
Stages # 2
Stages # 3
A furnace that has two stages of heating can produce heat at two different output levels. In contrast to a single-stage furnace (which only has power on and off settings), a two-stage furnace valve permits you to control the heating at either high- or low-stage. A fuel valve in a two-stage furnace provides two distinct degrees of natural gas flow. In mild weather, it uses less fuel to run which increases indoor comfort and energy efficiency.
A 2-stage furnace offers more control over fuel flow. Instead of a two-setting switch, it adds a third setting: low. Either low, high or off can be selected for the system. This easy upgrade improves energy efficiency and adds comfort to your house on those days when you don’t need to turn up the heat to get warm. It works by putting your house in the low setting at first and observing if the temperature gets to where you want it to. It will then turn on the high setting which creates more heat.
A single-stage residential furnace has a burner or heating element that comes on at full blast when called upon. The burner of a two-stage (or dual-stage) gas furnace runs at a high flame or a low/medium flame, and this can be adjusted at the gas valve via the area thermostat. The first, or low, stage of heating is activated when the thermostat senses a need for heat.
This is enough to raise the room temperature and meet thermostat requirements in mild weather. The second, or high, stage of heating will start and continue until the area is comfortable if the temperature lowers further. While attempting to reach the desired area temperature, the high stage in certain systems can “downshift” to the low stage. A different kind of two-stage furnace with two blowers has similar results by providing 2 blower fan speeds: a higher speed and a lower speed.
Stages # 1
Stages # 2
The primary difference between two-stage and three-stage snow blowers is simple. Three-stage snow blowers have larger engines in addition to extra parts like belts, impellers, and cutting augers. Three-stage snow blowers throw snow farther than 2 stage snow blowers and come with larger tires. The primary difference in functionality between a two-stage and three-stage snow blower is that the three-stage snow blower has an additional auger to chop or dice frozen snow and ice.
Compared to three-stage snow blowers, two-stage blowers have less ice-breaking and cutting ability. This is because, instead of helping in the breakdown of the tougher frozen material, their impellers and augers are made to “pull” the machine along, particularly during periods of heavy snowfall.
Stage 2 Snow Blower:
Stage 3 Snow Blower:
The main difference between a stage 2 and 5 stage air conditioner is how their cooling output and system performance is. A 2-stage air conditioner has two levels low (60-70% capacity) and high. (100% capacity). For a moderate level of cooling, a 2-stage air conditioner runs at a low stage.
The 2-stage system runs at a high stage in peak demand. If we talk more about 2 stages vs 5 stages the cost also differs. Stage 2 air conditioners are less expensive than a more advanced 5-stage system. A 5 stage system provides more humidity control and consistent indoor temperature.
Stage # 2
Stage # 5
The heat pump can only be fully heated or cooled by a single-stage compressor. A two-stage heat pump, also called a dual-stage heat pump, utilizes a two-stage compressor. There are two intensity levels: low (usually 70%) and high (100%). For most of the year, the heat pump will cycle on and off at low speed, or first stage, until the weather gets extremely cold or hot and requires a jump to high speed, or second stage, to keep up. In reaction to the temperature you select on the thermostat, the heat pump will automatically switch between stages.
When comparing heat pump stage 1 vs stage 2, it has been observed that stage 2 has more efficient control over the temperature in your home than stage 1. Stage 2 heat pumps use less energy and run for longer time periods.
A 3-stage AC unit has advanced features designed to operate at three levels; low, medium, and high. This helps in controlling temperature more precisely. When comparing it to Stage 1 and Stage 2, the Stage 3 system is more energy efficient and provides more comfort. A unit that frequently cycles on and off more often is also more prone to wear and tear, while a unit that has less cycling lasts longer.
A single-stage heating or cooling system means your furnace or air conditioner has only one level of heat or cold output. HVAC systems with a single stage are managed by single-stage thermostats. Single-stage thermostats have inputs for six or fewer wires and only regulate one heating system and one cooling system.Â
A 2-stage furnace has a fuel valve that provides two different levels of natural gas flow. It operates with less fuel in mild weather which improves your energy efficiency and indoor comfort. The old two-setting switch has been replaced with a third setting, low. The system can be set to either low, high, or off.Â
This simple update increases energy efficiency and comfort levels in your home. It works by first setting the temperature in your home to a low level and then monitoring it to see if it rises to the desired level. After that, it will operate on high, generating additional heat.
For the second stage of many two-stage furnaces to operate, no specific thermostat is needed. The system will be in stage 1 almost 99.9% of the time if it is properly sized and adjusted to, say, 72 degrees because it can sustain that temperature without any problems. The mechanism requires the additional.
BTUs reach that temperature in a certain amount of time, so if you raised it to, say, 80 degrees, it would first run in state one and then fire in stage 2. Running 65% or so 99% of the caller time is significantly more efficient than a single-stage system blasting on 100% and then off.
A two-stage heat pump is an HVAC system that operates at two different levels of capacity i.e. high or low. The dual capacity of the HVAC system helps save more energy and provides more comfort than a single-stage heat pump. It adjusts the temperature according to the climate which provides a more comfortable indoor environment.
There is more than one heating wire in 2 stage systems. Generally speaking, the heating wires should be inserted into terminals labeled with a “W.” Wires going into the W1 and W2 terminals will be present in a 2-stage conventional heating system.

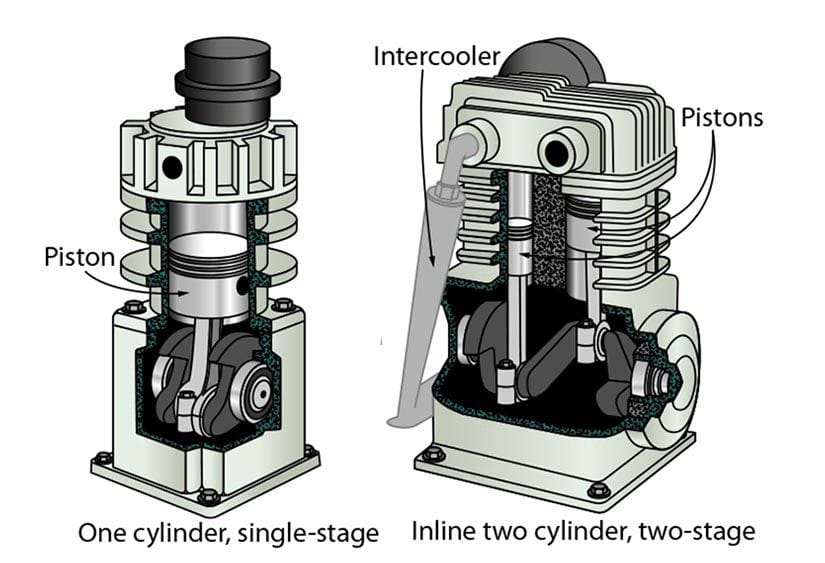

Based on the size of the cylinders and the quantity of air intakes, you can tell the number of stages of your air compressor. Every cylinder on a single-stage compressor will have an identical size and an independent inlet valve.
Â
A cooling tube connects the two pistons in a two-stage compressor that lowers the air’s temperature before the second compression cycle. The second piston in a two-stage compressor is shorter than the first.
Typically, single-stage air compressors are compact devices that are simple to move from one area to another. Multi-stage compressors, on the other hand, are usually bigger and a little bit heavier.
When an air conditioner or heat pump has two stages of temperature, it means that its compressor runs at two different speeds: high for hot summer days and low for cooler days. A two-stage unit generates more consistent temperatures during longer periods.
Yes, 2 stage HVAC is worth it because a two-stage heat pump or air conditioner removes twice as much moisture from the air as a single-stage unit. Moreover, extended cooling cycles also result in improved humidity control and more efficient performance.
A standard single-stage gas furnace operates at one capacity.  It will not change how it operates based on how cold it is outside. There are two heating output levels in a two-stage gas furnace: high fire and low fire. Low fire operates for at least 75% of the time. It usually activates the second stage (high fire) when the weather is really cold.
Stage 2 or backup heating is another term for supplementary heat; where the heat pump is the only source of heat in the first stage. When you utilize your supplemental heat (2nd stage) on its own without using your heat pump (1st stage heat), it’s known as emergency heat.
Two-stage furnaces are less expensive to operate than stage 1 and they require less energy. You will save hundreds of dollars on heating expenses if you have a two-stage furnace for an extended period of time.
